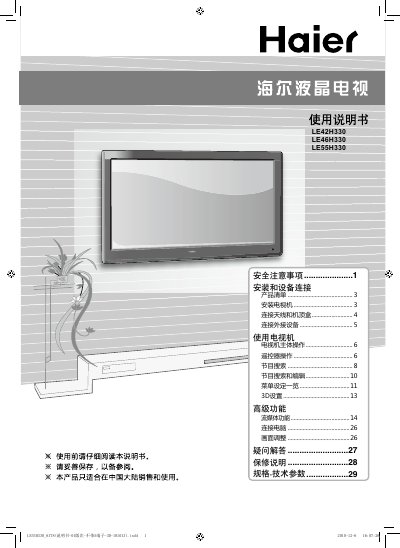

Haier LCD TV user manual, includes product list, installation of TV, connection of antenna and set-top box, connection of external devices, TV main operation, remote control operation, program search, program search and editing, menu setup overview, 3D setting, advanced functions, streaming media function, connecting computer, image adjustment and other contents
This manual begins with safety precautions, covering hazards such as electrical shock, fire risk, and proper handling of the TV. It then details installation procedures, including wall‑mounting recommendations, connection of antenna, set‑top box, and external devices.
Subsequent sections explain how to operate the TV and remote control, search and edit programs, adjust picture and sound settings, use 3D and streaming functions, and connect a PC. The document ends with a FAQ, warranty information, and a full list of technical specifications for the three model sizes. This manual is written in Chinese.
| Power consumption (typical) | 110 W (LE42H330), 130 W (LE46H330), 160 W (LE55H330) |
|---|---|
| Power supply | 220 V ~ 50 Hz |
| Video inputs | CVBS, component, HDMI/DVI, PC, USB, smart card |
| Audio formats | D/K, I, B/G, M |
| Supported TV standards | PAL, NTSC, SECAM |
| Supported HDMI resolutions | 720p 50/60 Hz, 1080i/1080p 50/60 Hz |
The remote control uses two AA (七号) batteries.
Connect the antenna to the antenna input and the set‑top box to the appropriate video input as described in the “连接天线和机顶盒” section.
LE42H330 consumes 110 W, LE46H330 consumes 130 W, and LE55H330 consumes 160 W.
