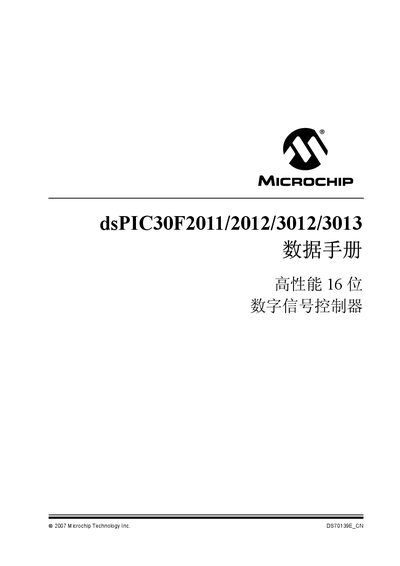

This datasheet introduces the features and usage of the dsPIC30F2011/2012/3012/3013 devices.
The dsPIC30F2011/2012/3012/3013 series are high‑performance 16‑bit digital signal controllers featuring an enhanced Harvard RISC CPU, up to 30 MIPS operation, and a range of integrated peripherals such as ADCs, timers, SPI, I²C and UART modules. The document provides detailed specifications, pin‑out diagrams, and product identification information.
The datasheet also includes information on memory capacities, voltage and temperature ranges, code‑protection features, and global sales and service contacts for Microchip Technology Inc. This manual is written in Chinese.
| Maximum CPU speed | 30 MIPS |
|---|---|
| Flash program memory | 24 KB |
| Data RAM | 2 KB |
| EEPROM size | 1 KB |
| ADC resolution | 12‑bit |
| ADC conversion rate | 200 ksps |
| ADC input channels | 10 |
| Operating voltage range | 2.5 V – 5.5 V |
| Industrial temperature range | -40 °C – +85 °C |
| Flash erase cycles (min) | 10 k cycles |
| Flash erase cycles (typical) | 100 k cycles |
| EEPROM erase cycles (min) | 100 k cycles |
| EEPROM erase cycles (typical) | 1 M cycles |
The controller can run up to 30 MIPS.
The device provides up to 10 ADC input channels.
It operates from 2.5 V to 5.5 V.
The controller is rated for -40 °C to +85 °C.
