Vishay Sprague 4-Terminal, Tubular, Axial Lead Aluminum Capacitors offer a wide temperature range, low impedance, and inductance limit of 2nH.
The 604D series from Vishay Sprague are 4‑terminal tubular aluminum electrolytic capacitors with very low impedance and an inductance limit of 2 nH. They are designed for a wide temperature range and are available on special order.

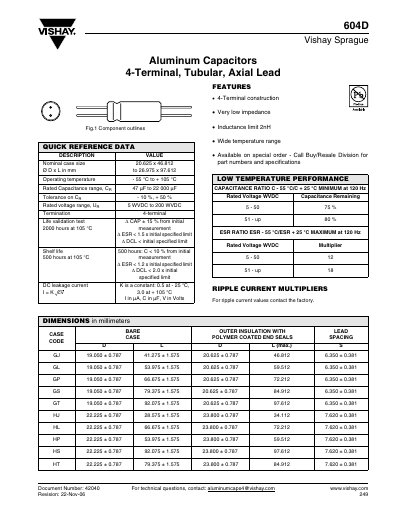

The datasheet lists quick reference data such as case size, operating temperature (‑55 °C to +105 °C), rated capacitance (47 µF‑22 000 µF), voltage range (5 WVDC‑200 WVDC), tolerance (‑10 % + 50 %), life‑validation test results, and low‑temperature performance ratios.
| Nominal case size | Ø 20.625 mm × 46.812 mm to Ø 26.975 mm × 97.612 mm |
|---|---|
| Operating temperature range | -55 °C to +105 °C |
| Rated capacitance range | 47 µF to 22 000 µF |
| Capacitance tolerance | -10 % to +50 % |
| Rated voltage range | 5 WVDC to 200 WVDC |
| Inductance limit | 2 nH |
| Life validation test | 2000 h at 105 °C |
| Shelf life | 500 h at 105 °C |
The capacitor operates from –55 °C up to +105 °C.
It is rated for voltages between 5 WVDC and 200 WVDC.
Capacitance values range from 47 µF to 22 000 µF.
The inductance limit is 2 nH.
