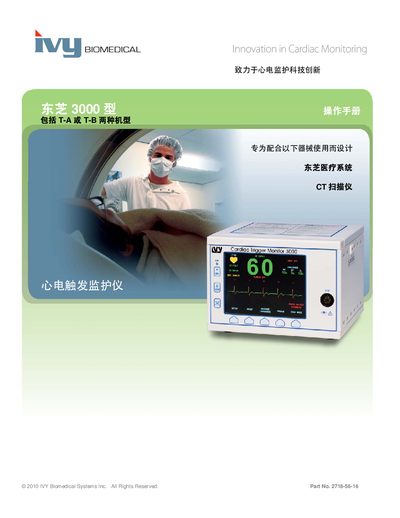

Ivy Biomedical Systems 3000T ECG Trigger Monitor Operation Manual, this monitor is designed to work with Toshiba Medical Systems CT scanners
This manual covers all aspects of the IVY OM 3000T ECG monitor, including safety precautions, patient lead connections, and detailed operating procedures. It also explains the menu structure for both the 3000T‑A and 3000T‑B models, alarm handling, and data recording features.
Technical information such as power requirements, environmental limits, EMC compliance, and full specifications are listed, along with warranty terms and service contact details for IVY Biomedical Systems Inc. This manual is written in Chinese.
| Input voltage | 100‑230 V~, 47‑63 Hz |
|---|---|
| Maximum power consumption | 35 VA |
| Display size | 13.25 cm × 9.94 cm (6.5 in diagonal) |
| Weight | 6.5 lb (2.9 kg) |
| Operating temperature range | 5 °C to 40 °C |
| Storage temperature range | -20 °C to 49 °C |
| Relative humidity | 0‑90 % non‑condensing |
| CMRR (patient lead) | ≥ 90 dB |
| Input impedance (patient lead) | ≥ 20 MΩ at 10 Hz |
| Leakage current (normal operation) | < 10 µA |
| EMC compliance | IEC‑60601‑1‑2 |
No. The OM 3000T ECG monitor must not be used in the magnetic field of an MRI system.
