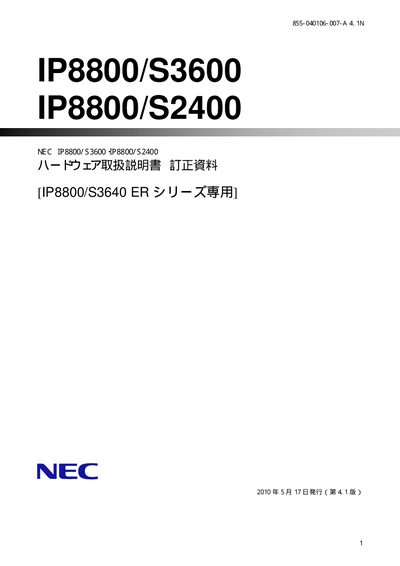

This document is about the revision information of IP8800/S3600・IP8800/S2400 Hardware Handling Instructions
The document is a correction supplement to the original hardware handling manuals for NEC's IP8800/S2400 and IP8800/S3600 Ethernet switches. It lists the specific manuals and devices covered, and provides revised information for hardware description, power modules, LED indicators, and environmental specifications.
Tables include model variants for both standard and rugged versions, power‑module compatibility, and detailed environmental limits such as operating temperature, noise, vibration, dust and humidity. The supplement also clarifies labeling of model numbers on the equipment. This manual is written in Japanese.
| Power module PS‑A01 input voltage | AC100V/AC200V |
|---|---|
| Power module PS‑DO1 input voltage | DC‑48V |
| Power module PS‑A02 input voltage | AC100V/AC200V |
| Power module PS‑DO2 input voltage | DC‑48V |
| Operating temperature (standard model) | 0‑40 °C (recommended 23‑28 °C) |
| Operating temperature (rugged model) | -10‑50 °C (recommended 23‑28 °C) |
| Noise level (standard model, 25 °C) | ≤35 dB |
| Noise level (standard model, 40 °C) | ≤45 dB |
The IP8800 series supports four power‑module types: PS‑A01 (AC100V/AC200V for standard redundant models), PS‑DO1 (DC‑48V), PS‑A02 (AC100V/AC200V for rugged redundant models), and PS‑DO2 (DC‑48V).
Standard models operate from 0 °C to 40 °C (recommended 23‑28 °C), while rugged models operate from –10 °C to 50 °C (recommended 23‑28 °C).
