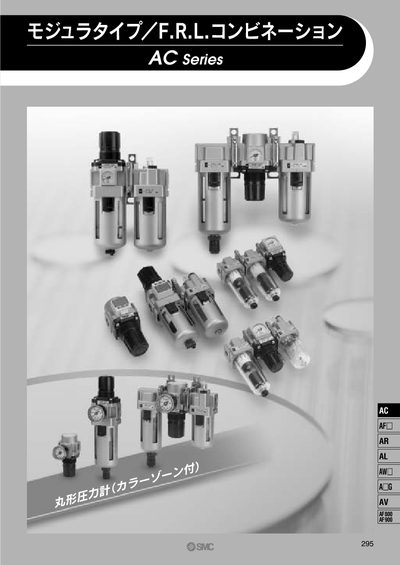

This document describes the features and characteristics of the AC series modular type/F.R.L. combination round pressure gauge (with color zones) and includes information on different models of pressure gauges and filter regulators, their connection sizes, and functions.
The SMC AC Series combines an air filter, pressure regulator and lubricator in a modular unit. Various models (AC10, AC20, AC30, AC40, AC50, AC55, AC60) are offered with optional accessories such as brackets, spacers, and digital pressure switches.
The document lists model configurations, connection sizes, pressure ranges, flow characteristics, and electrical specifications. Optional features and part numbers are also provided for custom orders. This manual is written in Japanese.
| Pressure resolution | 0.01 MPa |
|---|---|
| Power supply voltage | DC 12‑24 V |
| Supply current | ≤ 55 mA |
| Maximum load current | 80 mA |
| Response time | 1 s |
It operates from a DC supply of 12 to 24 V.
The pressure setting can be adjusted in steps of 0.01 MPa.
