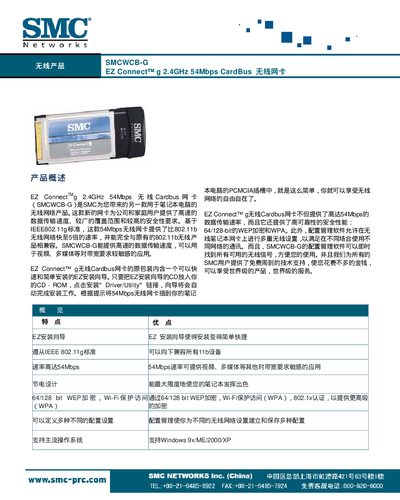

SMCWCB-G EZ Connect™ g 2.4GHz 54Mbps CardBus wireless network card is a 54Mbps wireless network card based on IEEE802.11g standard. It provides up to 54Mbps data transmission speed, supports 64/128-bit WEP encryption and WPA, and supports Windows 9x/ME/2000/XP operating systems.
The SMC WCB-G EZ Connect g 2.4GHz 54Mbps CardBus wireless network card is designed for notebook computers, offering high‑speed data transfer, wide coverage, and strong security based on IEEE 802.11g. It supports video and multimedia applications that require high bandwidth.
Installation is simplified with the EZ installation wizard: insert the provided CD, run the DriverUtility link, and follow the prompts to install the driver, then insert the CardBus card into the PCMCIA slot. The card also includes configuration software for managing multiple wireless networks and supports 64/128‑bit WEP, WPA, and 802.1x authentication. This manual is written in Chinese.
| Interface | 32-bit CardBus with PCMCIA Type 1 |
|---|---|
| Data Transfer Rate | 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps |
| Outdoor Operating Range | 400 m (54 Mbps) |
| Indoor Operating Range | 180 m (54 Mbps) |
| RF Frequency (US/EU) | 2400 MHz – 2483.5 MHz |
| Power Consumption (Tx) | 480 mA |
| Power Consumption (Rx) | 380 mA |
| Dimensions | 4.5" × 2.128" |
| Weight | 0.10 lb |
| Operating Temperature | -0 °C to +50 °C |
| Certifications | FCC Part 15(B), ETS 300-328, VCCI |
Insert the EZ installation wizard CD, run the "DriverUtility" link, and follow the prompts; then insert the CardBus card into the notebook's PCMCIA slot.
The card supports 64/128‑bit WEP encryption, WPA, and 802.1x authentication.
It works with Windows 9x, Windows ME, Windows 2000, and Windows XP.
