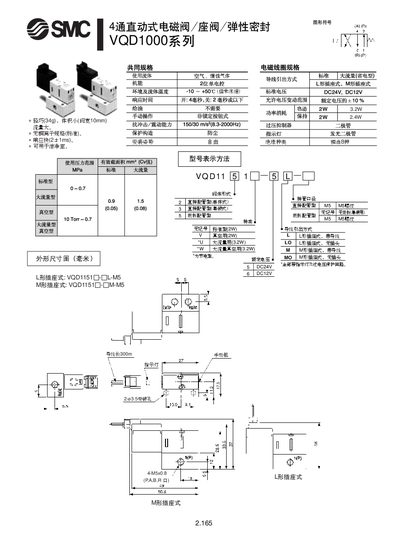

The VQD VQD1000 electromagnetic valve manual provides specifications, wiring length, mounting options, and key features.
This manual describes the VQD1000 series electromagnetic valve, including its compact size (10 mm width, 34 g weight) and fast response time of about 2 ± 1 ms. It lists the electrical ratings (DC24 V, DC12 V) and highlights features such as an indicator light and over‑voltage protection.
Various mounting configurations are covered, such as L‑shaped and M‑shaped socket types, direct‑pipe and base‑plate pipe styles, as well as wiring details (300 m wire length). The document also notes the valve’s flow capacity and suitability for clean‑room environments. This manual is written in Chinese.
| Valve width | 10 mm |
|---|---|
| Wire length | 300 m |
| Operating voltage | DC24 V, DC12 V |
| Over‑voltage protection | Yes |
The valve is supplied with a 300 m wire length.
The valve responds in about 2 ± 1 ms.
