SMC SA-PAC011 User Manual

This document introduces the IDG diaphragm air dryer and AFM oil mist separator, AFD micro mist separator, and other products provided by SMC Pneumatics (Hong Kong) Ltd. These products are suitable for trademark coding printing in the industrial packaging industry, improving printing speed and preventing nozzle clogging.

Brand: SMC
Category: Other
Document type: User Manual
Language: Chinese
Pages: 1
File format: PDF
File size: 798 KB
Published: 24 February, 2012
Updated: 28 September, 2023
MD5 checksum: 12A0DE65484342308802F6E149DFC6A4
PDF: SMC SA-PAC011 User Manual PDF

About this manual

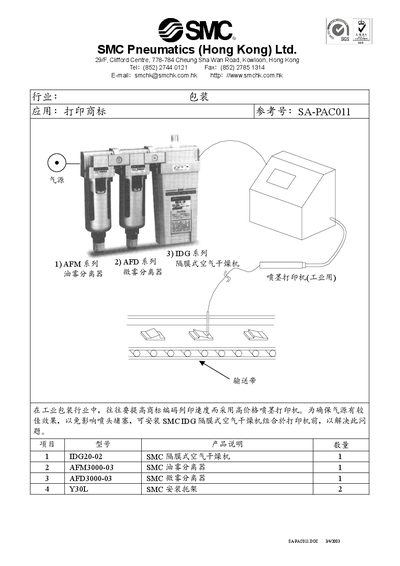

The document outlines the use of the SA‑PAC011 system in the industrial packaging sector for high‑speed trademark printing. It explains that an air dryer should be installed before the ink‑jet printer to prevent nozzle clogging.

A bill of materials is provided, recommending the SMC IDG20‑02 diaphragm air dryer, AFM3000‑03 oil‑mist separator, AFD3000‑03 micro‑mist separator, and two Y30L installation brackets for the system. This manual is written in Chinese.
