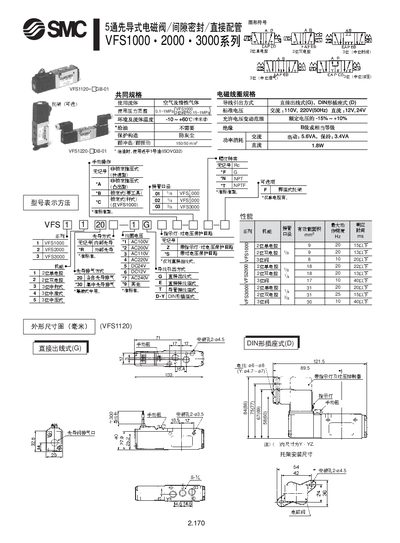

This is a catalog of VFS1000-3000 electromagnetic valve models, which mainly introduces the product specifications, performance, installation methods, etc.
This document describes the VFS series solenoid valves, covering performance data such as pressure range, port sizes, and coil voltage options. It also includes mechanical drawings, mounting dimensions, and wiring configurations for the different valve versions.
Installation guidance, indicator light functions, and pilot‑valve exhaust arrangements are explained, allowing users to correctly select and set up the appropriate valve for their application. This manual is written in Chinese.
| Pressure range | 0.15~1 MPa (non‑freezing) |
|---|---|
| Port size | 1/8, 1/4, 3/8 inch |
| Coil voltage options | 12 VAC, 24 VDC, 100 VAC, 110 VAC, 200 VAC, 220 VAC, 240 VAC |
The VFS series operates from 0.15 MPa up to 1 MPa without freezing.
Coil voltages are offered in 12 VAC, 24 VDC, 100 VAC, 110 VAC, 200 VAC, 220 VAC and 240 VAC.
Port sizes of 1/8, 1/4 and 3/8 inch are available.
