The VCL series direct-acting solenoid reversing valve is a high-performance product that is small, lightweight, and corrosion-resistant. It can be used for various fluids such as high-temperature oil, water, air, and steam.

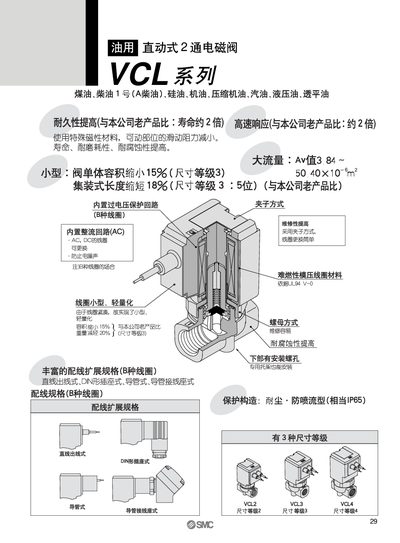

The VCL series oil‑use straight‑type‑2 solenoid valves are designed for high‑speed response and long service life. The document describes the valve construction, material options, and protective features such as dust‑proof and spray‑proof (IP65) design.
Detailed specifications, wiring options, coil types, and dimensional data are listed, along with safety precautions, installation steps, and maintenance procedures. The manual also includes part numbers for seals, clamps, and optional accessories for both single‑unit and modular (集装式) configurations. This manual is written in Chinese.
| Maximum test pressure | 5.0 MPa |
|---|---|
| Maximum fluid viscosity | ≤ 50 mm²/s |
| Rated voltage options | DC24V, AC100V, AC110V, AC200V, AC220V, AC230V |
| Protection rating | Dust‑proof, spray‑proof (IP65 equivalent) |
| Body material | C37 (brass) / SUS (stainless steel) |
| Seal material | FKM (Viton, Dial etc.) |
| Size grade 2 dimensions | 50.40 × 10 mm |
The valve can be tested up to 5.0 MPa pressure.
Available voltages are DC24V, AC100V, AC110V, AC200V, AC220V and AC230V.
The seals are made of FKM (fluoro‑rubber, e.g., Viton).
Yes, it has a dust‑proof and spray‑proof construction equivalent to IP65.
