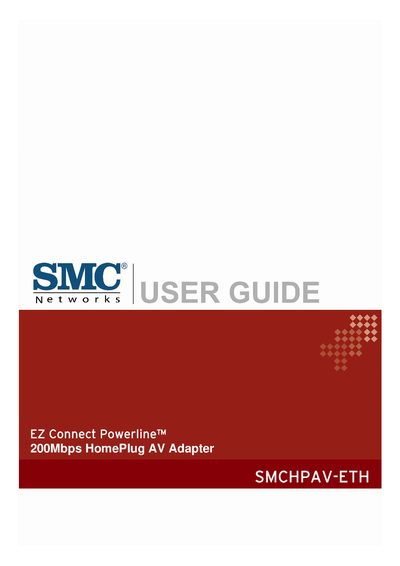

SMC SMCHPAV-ETH Powerline Adapter User Guide

About this manual

This guide covers important safety instructions for the SMCHPAV-ETH powerline adapter, including proper handling, fuse rating, and recommended placement. It also details the installation process, system requirements, and how to use the accompanying utility software to configure the device.

The manual explains how to join or remove the adapter from a private network, perform a factory reset, and provides compliance information and technical support contacts for U.S., Canada, and international users.

What's inside

• Important Safety Instructions
• Product Installation Guide
• System Requirements
• Utility Overview
• Network Setup Procedure
• Reset and Factory Default
• Technical Support

Specifications

Frequently asked questions

How do I reset the SMCHPAV-ETH to factory defaults?

Press the device’s Reset button for 2 seconds; the LEDs will turn off and the device will restart with factory settings.

What safety precaution should I take when connecting the adapter to a power outlet?

Plug the adapter directly into a wall outlet and avoid using a UPS or surge‑protected power strip; ensure the circuit fuse is no larger than 120 VAC/20 A or 240 VAC/16 A.

How can I remove the device from an existing private network?

Press and hold the Security button for more than 10 seconds to clear the network name, then perform a hardware reset if you need to restore default settings.
