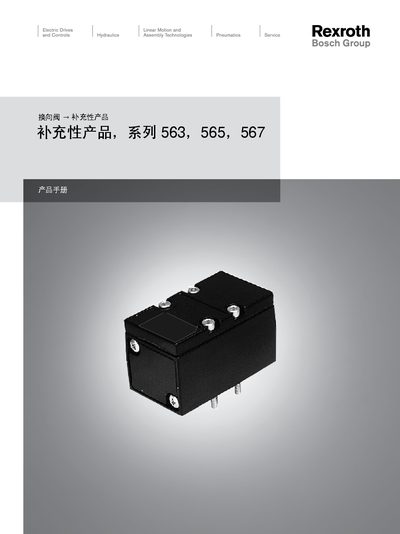

This document introduces the supplementary products of Bosch Rexroth AG's directional valves, including the 2/3-way directional valves and accessories of series 563, 565, and 567. The directional valves feature bottom plate connection, compressed air interface, and outlet.
The guide provides technical data for the 563, 565 and 567 series commutation valves used in pneumatic systems. It lists the flow range, pressure limits, temperature operating range and recommended connection sizes for each valve size.
Contact information for Bosch Rexroth, including phone, fax and web address, is included at the end of the document together with a disclaimer about the data being for reference only.
| Flow range (Qn) | 1350 – 13620 l/min |
|---|---|
| Maximum pressure | 10 bar |
| Minimum pressure | -1 bar |
| Operating temperature | -20 °C to +120 °C |
| Connection size (example) | G 1/4 |
| Connection size (example) | G 1/2 |
The valves can handle a flow between 1 350 l/min and 13 620 l/min.
They are rated for pressures from –1 bar up to 10 bar.
The allowed operating temperature is from –20 °C to +120 °C.
The 563 series uses a G 1/4 connection.
