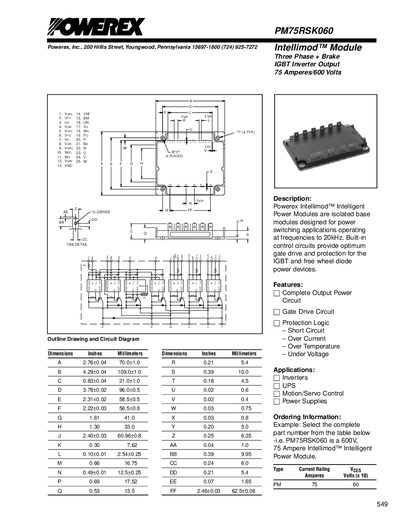

Powerex Intellimod™ Intelligent Power Modules are isolated base modules designed for power switching applications operating at frequencies up to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free wheel diode power devices.
The PM75RSKO060 is a three‑phase + brake IGBT inverter power module rated for 75 A continuous current at 600 V. It includes built‑in gate‑drive and protection circuits for the IGBT and free‑wheel diode, and is designed for switching applications up to 20 kHz.
The document lists absolute maximum ratings, electrical and mechanical characteristics, thermal resistance values, and protection settings such as over‑current, short‑circuit, over‑temperature, and under‑voltage thresholds.
| Current Rating | 75 A |
|---|---|
| Voltage Rating | 600 V |
| Module Weight (Typical) | 150 g |
| Isolation Voltage (AC, 1 min, 60 Hz) | 2500 V RMS |
| Junction Temperature Range | -20 °C to 150 °C |
| Supply Voltage (Typical) | 0 V to 800 V |
| Junction‑to‑Case Thermal Resistance (Inverter IGBT) | 1.0 °C/W |
The inverter sector can handle a collector current of up to 75 amperes.
The module is rated for 2500 V RMS isolation voltage for 1 minute at 60 Hz.
The typical weight of the module is 150 grams.
The junction temperature can operate from –20 °C up to 150 °C.
