POWEREX Trench Gate Design Dual IGBTMOD 150 Amperes/1200 Volts CM150DU-24F Manual

This product is a 1200V, 150A dual IGBTMOD™ power module, which adopts a half-bridge configuration and has low drive power, low VCE(sat), discrete super-fast recovery free-wheel diode, and isolated baseplate for easy heat sinking. It can be used for AC motor control, UPS and battery powered supplies applications.

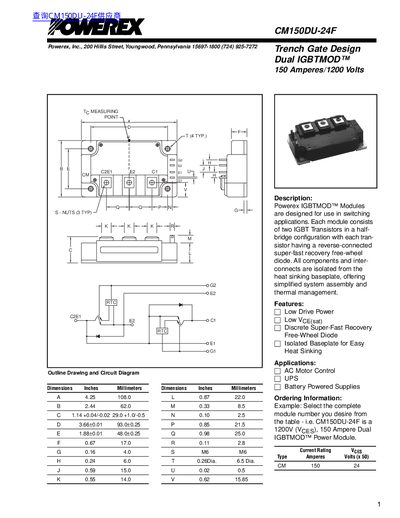

POWEREX Trench Gate Design Dual IGBTMOD 150 Amperes/1200 Volts CM150DU-24F Manual - cover page
Brand
Powerex
Document type
User Manual
Language
English
Pages
4
File format
PDF
File size
85 KB
Published
09 May, 2012
Updated
30 September, 2023
MD5 checksum
4F33B6D003D5246BE6C4224D60F0B0BD

About this manual

The CM150DU-24F Dual IGBTMOD is a trench‑gate design IGBT module rated for 150 A continuous collector current and 1200 V collector‑emitter voltage. It features low drive power, isolated baseplate, and fast recovery free‑wheel diode for simplified assembly and thermal management.

The manual lists absolute maximum ratings, static and dynamic electrical characteristics, thermal and mechanical data, and typical output characteristics, enabling designers to integrate the module safely into AC motor drives, UPS systems, and other high‑power applications.

What's inside

  • Description
  • Features
  • Applications
  • Absolute Maximum Ratings
  • Static Electrical Characteristics
  • Dynamic Electrical Characteristics
  • Thermal and Mechanical Characteristics
  • Collector‑Emitter Saturation Voltage Characteristics

Specifications

Collector‑Emitter Voltage (Vces)1200 Volts
Gate‑Emitter Voltage (Vges)+20 Volts
Peak Collector Current (Icom)300 Amperes
Weight400 Grams
Isolation Voltage (Main Terminal to Baseplate)2500 Volts AC (1 min)

Frequently asked questions

What isolation voltage is required between the main terminal and the baseplate?

The isolation voltage is specified as 2500 V AC for 1 minute.

What is the maximum collector‑emitter voltage the device can withstand?

The device can handle up to 1200 V collector‑emitter voltage.
