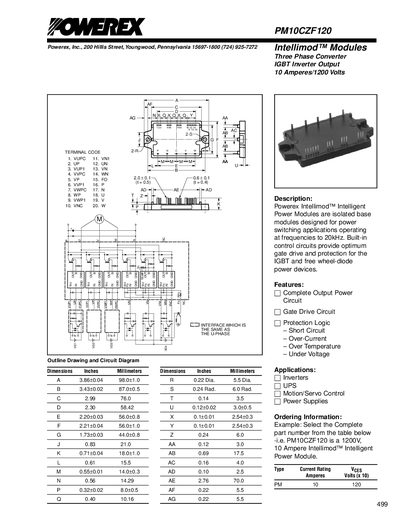

Powerex Intellimod™ Intelligent Power Modules are isolated base modules designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free wheel-diode power devices.
The PM10CZF120 is a three‑phase Intellimod™ power module designed for switching applications up to 20 kHz. It integrates IGBT inverter output stages with built‑in gate drive and protection logic.
Key specifications include a 10 A output current at 1200 V, isolation voltage of 2500 V AC (1 min, 60 Hz), and typical collector‑emitter saturation voltage of 2.7 V. Thermal resistance, mounting torque, and recommended operating conditions are also detailed.
| Output Current | 10 A |
|---|---|
| Output Voltage | 1200 V |
| Isolation Voltage | 2500 V AC (1 min, 60 Hz) |
| Supply Voltage (Protected) | 13.5 V ~ 16.5 V |
| Mounting Torque | 17 in‑lb |
The module is rated for a typical collector current of 10 A.
It provides 2500 V AC isolation for 1 minute at 60 Hz.
