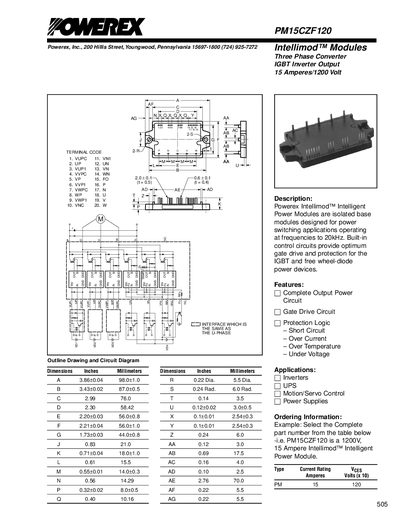

Powerex PM15CZF120 15 Amperes/1200 Volt Intellimod™ Intelligent Power Module is a three phase converter IGBT inverter output. It is designed for power switching applications operating at frequencies to 20kHz.
The PM15CZF120 is an Intellimod™ intelligent power module designed for three‑phase converter and IGBT inverter applications. It features built‑in gate‑drive and protection logic for IGBT and free‑wheel diode devices, supporting up to 20 kHz switching frequencies.
Key specifications include a 15 A current rating at 1200 V, isolation voltage of 2500 V AC, typical module weight of 80 g, and operating temperature range from –20 °C to 100 °C case temperature. The module also provides over‑current, short‑circuit, over‑temperature and under‑voltage protection, with PWM input frequency support from 5 kHz to 20 kHz.
| Current Rating | 15 Amperes |
|---|---|
| Voltage Rating | 1200 Volts |
| Module Weight (Typical) | 80 Grams |
| Isolation Voltage (AC, 1 min, 60 Hz) | 2500 Volts |
| Collector Dissipation | 83 Watts |
| Over Temperature Trip Level | 100‑120 °C |
| Mounting Torque | 17 in‑lb |
The collector current is rated at 15 Amperes.
The module provides 2500 V AC isolation for 1 minute at 60 Hz.
