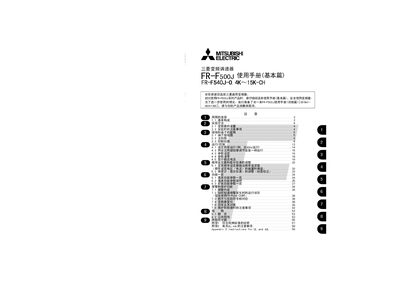

This document is a user manual for Mitsubishi general-purpose inverters, which introduces the basic components, installation methods, wiring and terminal specifications, operation/control methods, parameter settings, alarm and protection functions, etc.
This user manual covers the basic construction, installation method, and configuration of the Mitsubishi FR‑F500J frequency converter. It includes safety precautions, wiring diagrams, terminal specifications, and functional overviews such as frequency setting, alarm handling, and parameter adjustment.
Additional sections describe environmental requirements, cooling methods, and detailed technical specifications. Appendices provide compliance information for European and UL standards, as well as revision history and contact details for Mitsubishi Electric. This manual is written in Chinese.
| Rated input voltage | 3‑phase 380‑480 V 50/60 Hz |
|---|---|
| Rated output power (kW) | 0.4 kW – 15 kW (various models) |
| Rated current | 1.1 A – 29.5 A (depending on model) |
| IP rating | IP20 (closed type) |
| Cooling method | Self‑cooled, forced‑air cooling available |
| Weight | ≈1.5 kg (small models) up to 7.5 kg (large models) |
Apply a 0‑5 V or 0‑10 V signal to the frequency‑setting terminal, select Pr.73 to choose the voltage range, and the inverter will proportionally adjust the output frequency.
