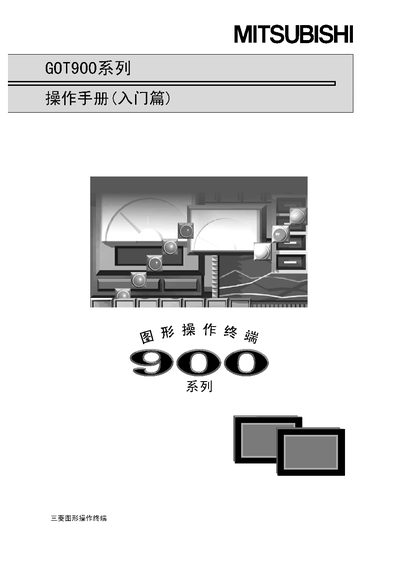

MITSUBISHI GOT900 series graphics operating terminal Manual

About this manual

This manual covers all safety precautions, assembly steps, and wiring requirements for the Mitsubishi GOT-A900 graphics operating terminal. It emphasizes the need to read the manual before use, keep power off during installation, maintain proper separation between control and power lines, and use external monitoring circuits for safety.

The document also details system configuration, graphics and object settings, screen creation, and how to connect the terminal to a PLC CPU or a personal computer. Additional sections describe startup, maintenance, troubleshooting, and related software tools such as GT Works and GT Designer. This manual is written in Chinese.

What's inside

• Safety Precautions
• Assembly Guidelines
• Wiring Guidelines
• System Configuration
• Graphics and Object Settings
• Screen Creation
• Connecting to PLC and PC
• Startup and Maintenance
• Related Manuals

Specifications

Frequently asked questions

How should the GOT terminal be connected to a personal computer?

Connect the PC to the GOT using the procedure described in section 5.1, which outlines the required cables and steps.

What torque range should be used when tightening assembly bolts?

All assembly bolts must be tightened within the specified torque range indicated in the manual.
