The GLB..9E series ball valve actuators are rated at AC24V/AC230V for three-position control or analog control.

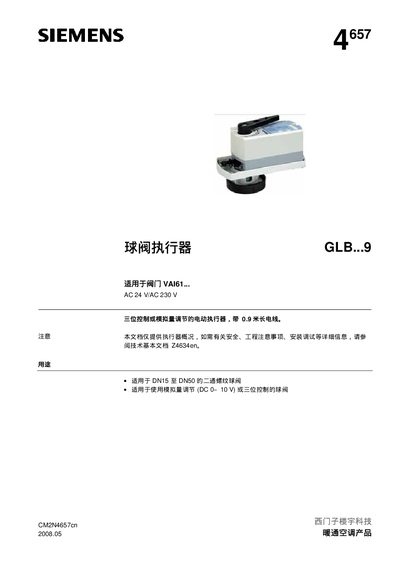

The document gives a concise overview of the GLB series ball valve actuators, covering model variants GLB131.9E, GLB161.9E, and GLB331.9E. It describes control types, wiring connections, and key functional features such as three‑position and analog (0‑10 V) control.
Technical data such as working voltages, power consumption, IP rating, environmental limits, and wiring color codes are listed, along with a wiring diagram for both three‑position and analog control configurations. The manual also references related technical documents for detailed installation and safety information. This manual is written in Chinese.
| Power consumption (GLB131.9E run) | 2 VA |
|---|---|
| Power consumption (GLB161.9E run) | 3 VA |
| Nominal / maximum angle | 90° / 95° |
| Rotation angle travel time (50 Hz) | 150 s |
| Maximum output current | 1 mA DC |
| Standard cable length | 0.9 m |
| Net weight | 0.75 kg |
| Operating temperature range | -32 °C to +55 °C |
| Maximum relative humidity | < 95 % |
GLB131.9E and GLB331.9E use three‑position control, while GLB161.9E uses analog control (0‑10 V).
The GLB161.9E consumes 3 VA during operation.
Red (RD) is the line for AC 24 V, and black (BK) is the neutral.
