The Super Modular Device Controller is a high-performance direct digital controller (DDC) that can operate independently and in a network to perform complex control, monitoring and energy management functions without relying on a higher level processor.
The Power MEC series are high‑performance direct digital controllers (DDC) for HVAC and building automation. They operate independently or on a network (BLN, LonWorks, Ethernet) and support flexible I/O expansion via analog and digital point modules.

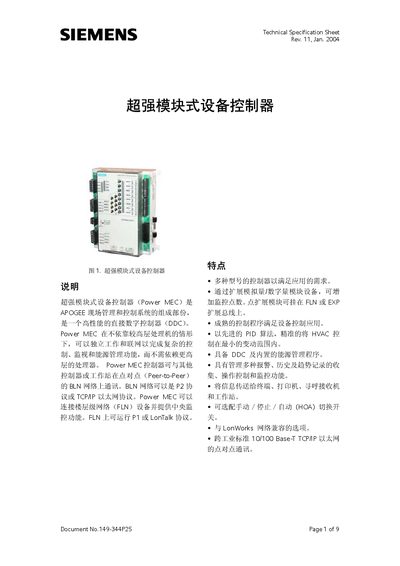

The document provides detailed hardware specifications, power consumption data, enclosure dimensions, environmental limits, certification compliance, and ordering codes for the various Power MEC series (1100, 1200, 1300, etc.). This manual is written in Chinese.
| Processor | Motorola MPC 1XXX series (e.g., 857T) |
|---|---|
| Processor Clock Frequency | 48 MHz |
| I/O Points per Controller | 32 input/output monitoring points |
| Power Consumption (Controller) | 17 VA @ 24 VAc |
| Operating Temperature Range | -20 °C to +49 °C |
| Enclosure Type | NEMA 1 (small and large) |
The controller can handle 32 input and output monitoring points, which can be expanded with analog or digital point modules.
It is rated for temperatures from –20 °C to +49 °C and humidity up to 93 % RH without condensation.
