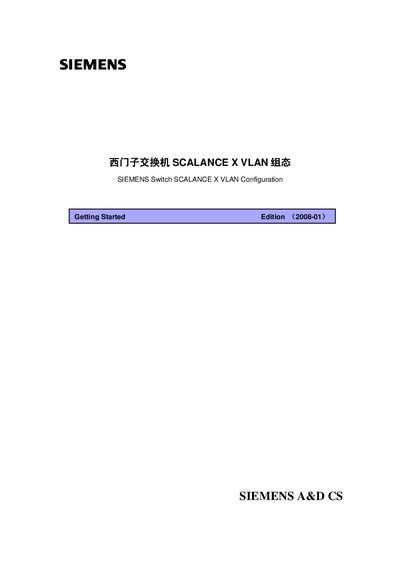

This article introduces the configuration of the SCALANCE X VLAN for Siemens switches, including support for virtual networks, the purpose and types of VLANs, and the configuration of VLANs based on ports. It also provides detailed instructions on configuring the SCALANCE X414-3E switch and setting the IP address using PST.
The document provides an overview of VLAN concepts, their functions, and how they are applied to Siemens SCALANCE X series switches. It describes the support for VLAN on SCALANCE X300/400 series ports and details the use of GVRP for automatic VLAN registration.
Step‑by‑step configuration instructions are given, including how to assign VLAN IDs, set up trunk ports, and use the Primary Setup Tool (PST) to configure IP addresses. Example network topologies with multiple switches (Switch A, Switch B) and PC connections illustrate practical deployment scenarios. This manual is written in Chinese.
| Maximum VLANs per port | 62 |
|---|---|
| Reserved VLAN ID | 500 |
Up to 62 VLANs can be assigned to each port.
GVRP (GARP VLAN Registration Protocol) is used for automatic VLAN registration.
VLAN‑ID 500 is reserved for special use.
