The Polycom HDX 9000 series is a high-performance video conferencing system that provides an HD collaboration experience in meeting rooms, lecture halls, and large conference rooms. The series features advanced audio and video technology to deliver lifelike audio and high-definition images, allowing participants to communicate clearly. In addition, the series supports multi-point conferencing to easily connect multiple venues.
The Polycom HDX 9000 series provides high‑performance video‑conferencing for meeting rooms, lecture halls and large venues. It integrates multiple video and audio interfaces, API support and optional accessories such as ceiling microphones and remote receivers.

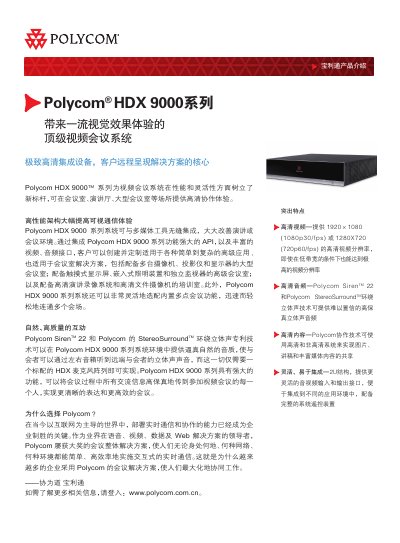

Key technical specifications include 1080p/30 fps video, Polycom EagleEye cameras with up to 12× optical zoom, Polycom Siren 22 and StereoSurround audio technologies, and a flexible 2U chassis with web‑based management and security features. This manual is written in Chinese.
| Maximum video resolution | 1080p/30 fps |
|---|---|
| Supported video formats | H.264, H.264 High Profile, H.263++, H.261, H.239 |
| Camera model and zoom | Polycom EagleEye, 1280 × 720 p, 12× optical zoom |
| Audio technology | Polycom Siren 22 and StereoSurround |
| Typical power consumption | 189 VA @ 115 V, 0.67 PF |
| Operating temperature range | 0 °C to 40 °C |
| Unit dimensions (W×H×D) | 436.88 mm × 87.38 mm × 368.3 mm |
It supports up to 1080p at 30 fps and 720p at 60 fps, with lower‑resolution options such as 4SIF and CIF.
The system includes Polycom Siren 22 and StereoSurround technologies for high‑fidelity stereo sound.
Typical power consumption is 189 VA at 115 V (0.67 PF) or 192 VA at 230 V (0.66 PF).
