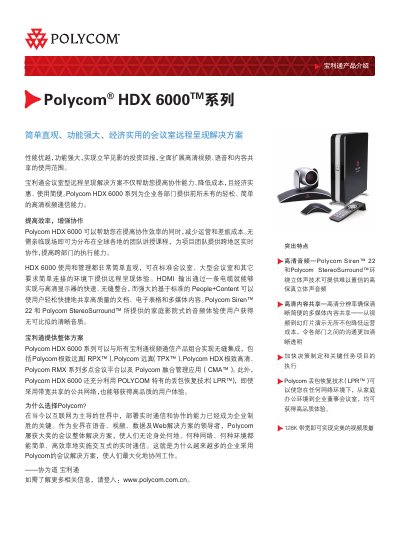

The document introduces the features of the Polycom HDX 6000 series conference room remote presentation solution, including high-definition audio, high-definition content sharing, and packet loss recovery technology.
The guide introduces the Polycom HDX 6000 Series as a powerful, cost‑effective solution for remote presentation in conference rooms. It highlights high‑definition audio with Polycom Siren™ 22 and StereoSurround™ technology, high‑definition video sharing, and Polycom's loss‑packet recovery (LPR™) that ensures quality over any network.
Technical specifications are listed, covering video codecs (H.264, H.263, H.261, H.239), audio codecs (G.711, G.722, G.728, G.729A, G.719), network interfaces, power consumption, environmental limits, and physical dimensions. Contact information for Polycom offices in China is also provided. This manual is written in Chinese.
| Maximum receive video resolution | 1080p/30fps @ ≥1Mbps |
|---|---|
| Secondary receive video resolution | 720p/60fps @ ≥832Kbps |
| Supported audio codecs | G.711, G.722, G.728, G.729A, G.719, G.722.1 |
| Network interface | 10/100/1000 Ethernet RJ45 |
| Power consumption (115 V) | 189 VA @ 0.67 PF |
| Operating temperature range | 0‑40 °C |
| Storage temperature range | -40‑70 °C |
| Physical dimensions (H × W × D) | 352 mm × 129 mm × 279 mm |
It supports 1080p at 30 fps with at least 1 Mbps bandwidth, as well as 720p at 60 fps with at least 832 Kbps.
The system supports G.711, G.722, G.728, G.729A, G.719, and G.722.1 audio codecs.
It includes a 10/100/1000 Ethernet RJ45 port for network connections.
Typical power consumption is 189 VA at 115 V with a power factor of 0.67.
