Polycom HDX 7000 series is a high-quality, high-availability high-definition conference solution that greatly enhances the convenience of visual communication. HDX 7000 is the ideal remote presentation solution for companies that want to connect widely dispersed team members and achieve more efficient collaboration.
The HDX 7000 series delivers a high‑quality, high‑availability HD conferencing solution for education, tele‑medicine, enterprise communication and on‑demand collaboration. It features intuitive interfaces, flexible wall‑mount or free‑standing installation, a built‑in MCU and People+Content technology for seamless HD content sharing.

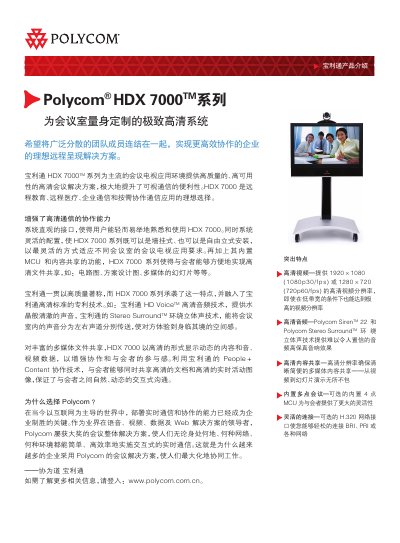

Technical specifications include 1080p/30 fps video at ≥1 Mbps, Polycom Siren 22 and Stereo Surround audio, multiple network interfaces, power consumption of 189 VA at 115 V, operating temperature 0 °C‑40 °C, and a compact chassis measuring 352 mm × 129 mm × 279 mm. This manual is written in Chinese.
| Maximum video resolution | 1080p/30 fps @ ≥1 Mbps |
|---|---|
| Audio technologies | Polycom Siren 22 and Polycom Stereo Surround |
| Power consumption | 189 VA @115 V @ 60 Hz @ .67 PF |
| Operating temperature range | 0 °C to 40 °C |
| Physical dimensions (host unit) | 352 mm × 129 mm × 279 mm (H × W × D) |
It supports 1080p/30 fps, 720p/60 fps, 720p/30 fps, 4SIF/4CIF at 60 fps, and lower resolutions such as SIF and QCIF.
The optional built‑in MCU provides up to four points for multi‑site conferencing.
The system uses Polycom Siren 22 and Polycom Stereo Surround for high‑fidelity, immersive audio.
