The Polycom HDX 6000 series is a high-performance, feature-rich, and cost-effective conferencing room remote presentation solution that delivers a high-quality experience in any network environment, from home offices to corporate boardrooms. This solution can help you improve collaboration efficiency, reduce operating and travel costs, and provide enterprise departments with an unprecedented level of easy-to-use high-definition video communications.
The HDX 6000 series delivers a simple, intuitive, and cost‑effective solution for remote presentation in meeting rooms of any size. It supports high‑definition video, audio, and content sharing through a single HDMI cable and integrates with other Polycom video‑communication products.

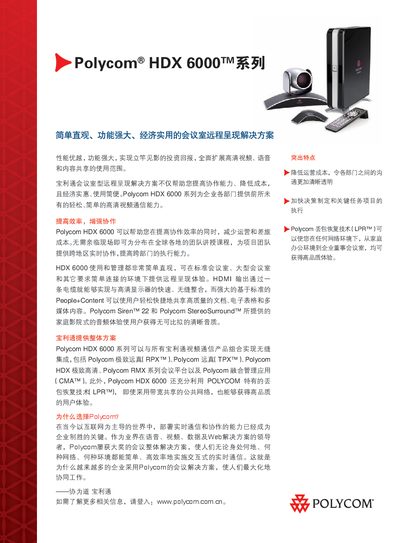

Technical specifications include support for multiple video codecs, a 1280×720p EagleEye camera, Ethernet networking, power consumption of 189 VA at 115 V, and environmental operating ranges from 0‑40 °C. Physical dimensions, weight, and audio features are also listed. This manual is written in Chinese.
| Video resolution | 720p/30fps |
|---|---|
| Camera sensor | 1280x720p CCD |
| Power consumption | 189VA @ 115V 60 Hz |
| Operating temperature | 0‑40 °C |
| Dimensions (H×W×D) | 13.87" × 5.08" × 11" |
| Weight (codec unit) | 12 lb |
Typical power consumption is 189 VA at 115 V, 60 Hz with a power factor of about 0.67.
The unit operates from 0 °C to 40 °C and a humidity range of 10 % to 80 %.
