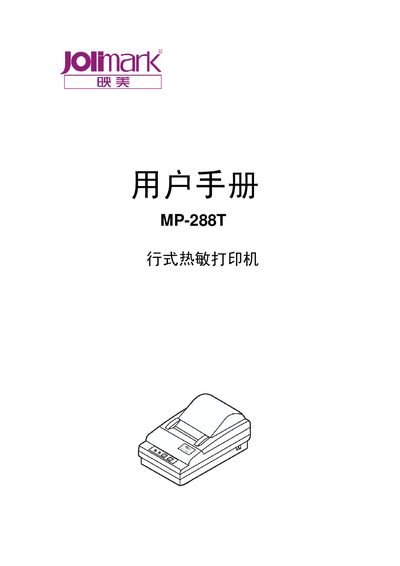

This is the user manual of MP-288T line thermal printer, which introduces the product features, installation, use, maintenance and other information.
This manual introduces the MP-288T, a compact direct‑thermal receipt printer designed for POS and banking applications. It covers safety precautions, product components, and how to set up the printer with power, paper and computer interfaces.
Detailed sections describe the control panel, technical specifications, maintenance procedures, and the full set of ESC/POS print commands, including barcode and graphics functions. Appendices provide a command reference table. This manual is written in Chinese.
| Printing method | Direct thermal printing |
|---|---|
| Paper width | 57.5 ± 0.5 mm |
| Effective print width | 48 mm |
| Print density | 8 dots/mm |
| Print speed | ≈ 45 mm/s (≈ 10 lines/s) |
| Paper roll dimensions | Width 57.5 ± 0.5 mm, outer Ø 60 mm, inner Ø 13 mm, thickness 53‑60 g/m² |
| Character matrix (ASCII) | 12 × 24 dots (or 16 × 24 dots) |
| Chinese character matrix | 24 × 24 dots |
