Mini TOPLED® LS M670, LO M670, LY M670 LG M670, LP M670 are small-sized LED lights produced by Osram company in Germany. They are available in various colors, high brightness, high luminous efficiency, and are suitable for backlighting, optical coupling into light pipes and lenses.

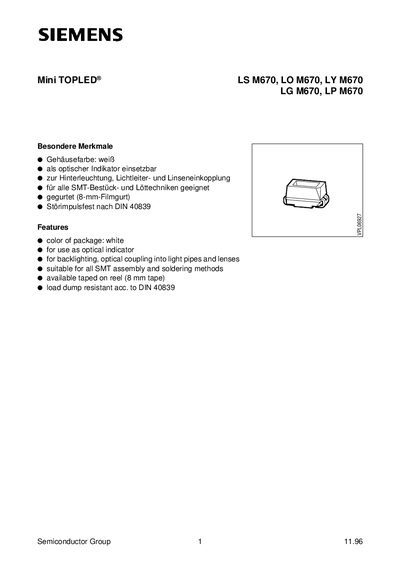

The Mini TOPLED series from Siemens includes the LS M670, LO M670, LY M670, LG M670 and LP M670 devices. They are designed for backlighting, optical coupling into light pipes and lenses, and can be used as optical indicators. All devices are suitable for standard SMT assembly and soldering processes and are available on 8‑mm tape.
The data sheet provides detailed electrical and optical characteristics, maximum ratings, and package dimensions. Key parameters such as operating temperature range, forward current, wavelength, and viewing angle are listed for each variant, enabling designers to select the appropriate part for their application. This manual is written in German.
| Operating temperature range | -55 °C to +100 °C |
|---|---|
| Storage temperature range | -55 °C to +100 °C |
| Forward current | 30 mA |
| Package size | 1.4 × 0.8 mm |
The devices operate from –55 °C up to +100 °C.
The maximum forward current is 30 mA.
The standard package measures 1.4 mm × 0.8 mm.
