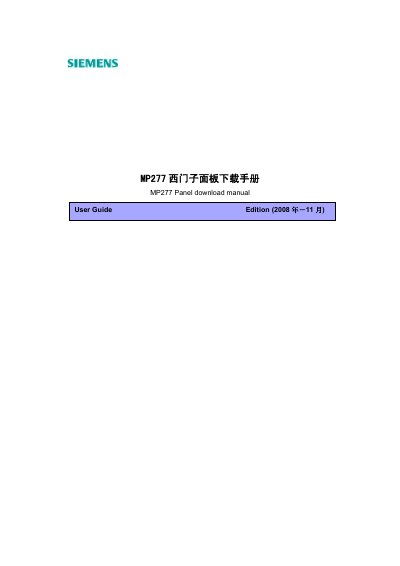

This manual is about the download manual for Siemens MP277 panel, which introduces the panel's configuration software, operating system, and download methods. It also mentions the reference to other high-end panels and some download requirements and settings.
The manual explains how to download configuration and firmware to the Siemens MP277 HMI panel. It covers supported download methods such as PC/PPI, MPI/DP, and USB, and includes requirements for the host PC, cable connections, and compatible CPU modules.
It also details OS update procedures, transfer settings, and how to configure the panel in WinCC Flexible. Example settings like baud rate (115200) and required hardware modules are provided, helping technicians complete panel downloads and updates safely. This manual is written in Chinese.
| Supported CPU modules | 6BS7901-3BF20-0XAO, 6ES6901-3BF21-0XAO, 6ES7901-3CB30-0XA0 |
|---|---|
| Default communication baud rate | 115200 |
Connect the PC/PPI cable to the panel’s IF1B port, then follow the download steps described in the manual.
The MP277 panel supports the CPU modules 6BS7901-3BF20-0XAO, 6ES6901-3BF21-0XAO and 6ES7901-3CB30-0XA0.
USB download is not supported for the MP277 panel; only PC/PPI and MPI/DP methods can be used.
Set the baud rate to 115200 to match the panel’s communication settings.
