The product is a chip inductor in the EXCCL series. It has the characteristic of suppressing the noise of the power line and the high-speed signal line. The product has three sizes: 4.5x3.2x1.8, 3.2x2.5x1.6, and 3.2x1.6x1.6. The rated current is 3, 4, and 5 amps respectively.

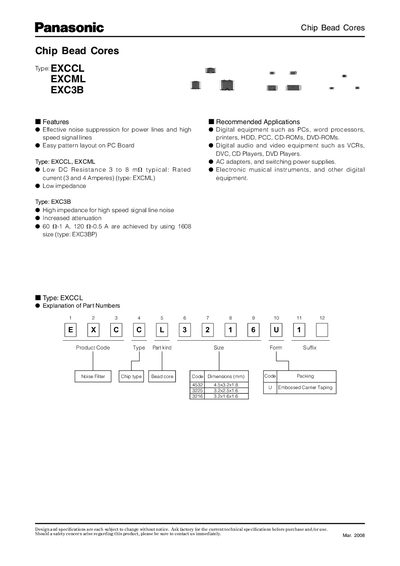

The Panasonic chip bead core series (EXCCL, EXCML, EXC3B) provides effective noise suppression for power lines and high‑speed signal lines. The parts feature low DC resistance, low or high impedance options, and are suitable for digital equipment such as PCs, printers, audio/video devices, AC adapters and switching power supplies.
The document lists detailed construction dimensions, nominal impedance values, rated currents, packaging formats, recommended land‑pattern dimensions and soldering conditions, as well as safety and storage precautions for reliable use in electronic assemblies.
| Low DC Resistance | 3 to 8 mΩ typical |
|---|---|
| Rated Current | 3 A to 4 A (type EXCML) |
| Nominal Impedance (EXCCL4532U1) | 115 Ω |
| Package Dimensions (4532) | 4.5 × 3.2 × 1.8 mm |
| Reel Quantity (EXCCL4532U1) | 1000 pcs / reel |
| Recommended Storage Humidity | 40 % to 60 % RH |
Reflow soldering should peak at 235 °C ± 10 °C for up to 10 seconds, with a main heating temperature above 200 °C for 30‑40 seconds.
The EXCCL4532U1 part has a nominal impedance of 115 Ω.
