This document describes the technical specifications and features of the Aluminum Electrolytic Capacitors HB series. The product has characteristics such as high temperature endurance and vibration resistance, and is RoHS compliant. Specifications for different sizes and rated voltages are provided.
This document provides the technical data for Panasonic's HB series aluminum electrolytic capacitors, including endurance of 105 °C for 2000 h, RoHS compliance, and a range of voltage and capacitance options. It also lists key features such as vibration‑proof options and surface‑mount form factor.

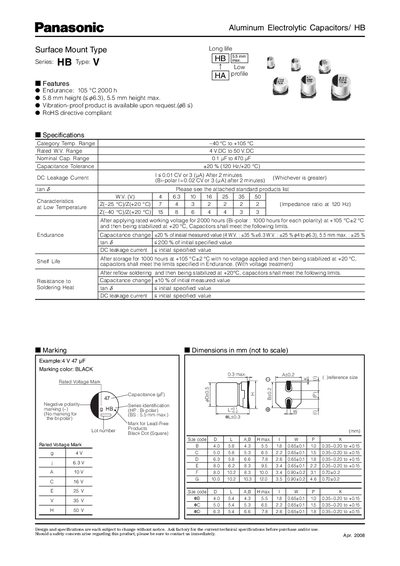

The datasheet contains detailed specifications (temperature range, rated voltage, capacitance tolerance, leakage current, impedance), dimensional drawings, marking conventions, packaging quantities, and reflow soldering profiles for both standard and bi‑polar versions.
| Endurance | 105 °C, 2000 h |
|---|---|
| Temperature Range | -40 °C to +105 °C |
| Rated Voltage Range | 4 V DC to 50 V DC |
| Capacitance Range | 0.1 µF to 470 µF |
| Capacitance Tolerance | +20 % |
| DC Leakage Current | < 0.01 CV or 3 pA after 2 min |
| Impedance (120 Hz) | Impedance ratio at 120 Hz, e.g., 7 – 2 |
| Height | 5.8 mm (max 6.3 mm) |
| RoHS Compliance | Yes |
| Marking Color | Black |
The HB series capacitors are rated for an endurance of 105 °C for 2000 hours.
Yes, the HB capacitors meet the RoHS directive requirements.
They are available with a rated voltage range from 4 V DC up to 50 V DC.
The marking color for the HB series is black.
