This document provides a detailed introduction to the features and characteristics of the 553-001 series air flow sensors produced by Bosch Rexroth AG, including the working pressure range, ambient temperature, medium temperature, particle size, oil content in compressed air, power consumption, response time, and protection class.

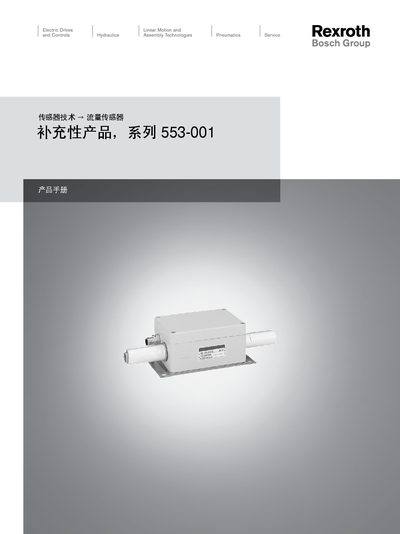

This manual describes the Bosch Rexroth 553-001 series flux sensor, covering its technical data, connection options, and safety notes. It is intended for engineers and technicians who install or service the sensor in pneumatic systems.
The document includes flow and pressure specifications, electrical ratings, and contact details for Bosch Rexroth support. It also contains a disclaimer about product wear and the need for user verification.
| Flow range | 250 – 1000 l/min |
|---|---|
| Maximum pressure | 10 bar |
| Operating temperature | 45 °C / 450 °C |
| Maximum current | 300 mA |
| IP rating | IP54 |
The sensor operates with a flow range of 250 to 1000 l/min.
The device is rated for a maximum pressure of 10 bar.
The sensor draws up to 300 mA of current.
It has an IP54 protection rating.
