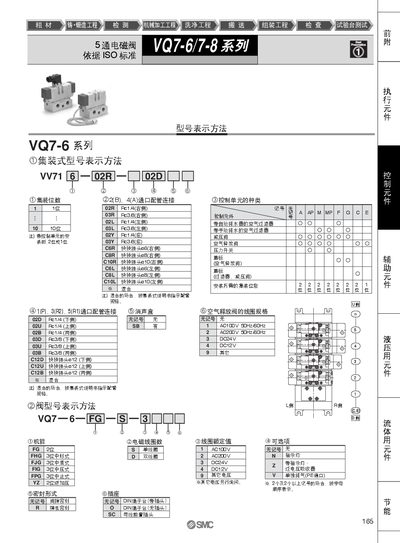

VQ7-6/7-8 series solenoid valve product catalog, providing information such as product model, interface, coil specification, etc.
This manual describes the VQ7-6/7-8 series control elements, including model designation, graphic symbols, and standard specifications. It is intended for users who install, operate, and maintain these pneumatic control valves.
Key technical data such as maximum operating pressure, coil voltage options, environmental limits, and shock/vibration resistance are listed, along with IP65 protection details and power consumption figures. This manual is written in Chinese.
| Maximum Operating Pressure | 1.0 MPa |
|---|---|
| Coil Rated Voltage | DC12V, 24V, AC100V, 110V, 200V, 220V |
| IP Protection Rating | IP65 |
| Environmental Temperature Range | -10 °C to 60 °C |
| Shock/Vibration Resistance | 150/30 m/s² |
| Power Consumption (AC100V) | Startup 1.2 VA (12 mA) |
The maximum operating pressure is 1.0 MPa.
The coil can be powered by DC12V, 24V, AC100V, 110V, 200V, or 220V.
The device has an IP65 protection rating.
It can operate between -10 °C and 60 °C.
