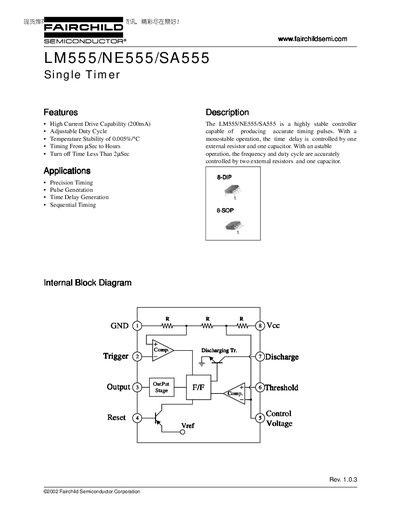

The Fairchild LM555/NE555/SA555 single‑timer IC family provides high‑current drive capability, adjustable duty cycle, and precise timing from picoseconds to hours. It supports monostable, astable, pulse‑width and pulse‑position modulation modes.
The document lists absolute maximum ratings, electrical characteristics, application circuits, and ordering information for DIP and SOP packages, along with safety and disclaimer notices.
| Supply Voltage | 4.5 – 16 V |
|---|---|
| Operating Temperature Range (LM555/NE555) | 0 °C to +70 °C |
| Storage Temperature Range | -65 °C to +150 °C |
| Maximum Output Current (ISOURCE) | 200 mA |
The maximum supply voltage is 16 V.
It operates from 0 °C up to +70 °C.
The device can source up to 200 mA.
Both 8‑DIP and 8‑SOP packages are available.
