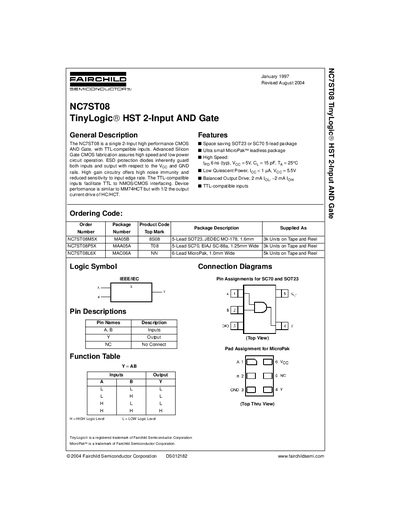

The NC7ST08 TinyLogic HST 2-Input AND Gate is a high performance CMOS AND Gate with TTL-compatible inputs from Fairchild Semiconductor Corporation.
The NC7ST08 is a high‑performance CMOS 2‑input AND gate with TTL‑compatible inputs, low power consumption, and built‑in ESD protection. It is offered in space‑saving SOT‑23, SC‑70, and leadless MicroPak packages.
The document lists absolute maximum ratings, recommended operating conditions, DC and AC electrical characteristics, tape‑and‑reel packaging specifications, and physical dimensions, along with a life‑support policy disclaimer.
| Typical propagation delay | 6 ns |
|---|---|
| Balanced output drive | ±2 mA |
The typical propagation delay is 6 ns.
The device can source or sink up to ±2 mA.
