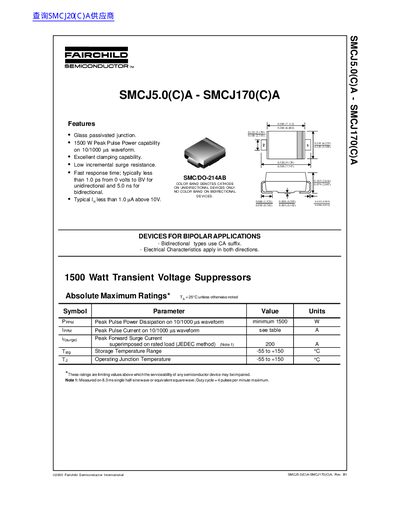

SMCJ5.0(C)A - SMCJ170(C)A is a 1500 watt transient voltage suppressor from Fairchild Semiconductor International.
The SMCJ series transient voltage suppressors from Fairchild Semiconductor provide glass‑passivated junctions with up to 1500 W peak pulse power, low incremental surge resistance and fast response times. They are offered in both unidirectional and bidirectional versions and are suitable for protecting circuits against high‑energy transients.
Key electrical ratings include a peak pulse power dissipation of 1500 W, storage temperature range from –55 °C to +150 °C, and a maximum reverse surge current of 200 A. The devices are supplied in the SMC/DO‑214AB (SMC) surface‑mount package with detailed dimensions and land‑pattern specifications provided.
| Peak Pulse Power Dissipation | 1500 W |
|---|---|
| Storage Temperature Range | -55 °C to +150 °C |
| Operating Junction Temperature | -55 °C to +150 °C |
| Package Type | SMC/DO‑214AB |
The devices are rated for a peak pulse power dissipation of 1500 W on a 10/1000 µs waveform.
They can be stored from –55 °C up to +150 °C.
They are supplied in the SMC/DO‑214AB (SMC) surface‑mount package.
No, Fairchild states the products are not authorized for use as critical components in life‑support devices without written approval.
