A new 2-color printer (blue/black or red/black) has been added to the FTP-602 Series. This series of compact thermal printers, powered by a 24V battery, can print at high speed. It is suitable for various applications, such as portable terminals, POS terminals, ticket machines, coupon machines, label printers, banking machines, measuring devices, medical equipment, etc.

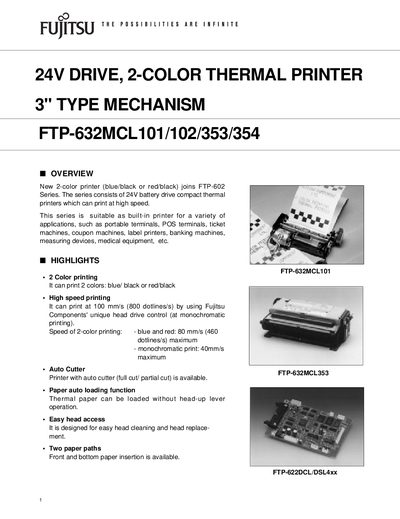

The FTP‑632MCL series are 24 V drive, 2‑color (blue/black or red/black) thermal printers designed for portable terminals, POS, ticket and label applications. The manual covers model variants with front or bottom paper insertion, optional auto cutter, and two paper paths.
Key functions include test printing, paper‑out detection, motor power‑save, cutter trouble detection, and various safety protections. Technical data such as printing speed, dot structure, power requirements, and environmental limits are listed, along with connector pinouts for the thermal head and motor.
| Printing method | Thermal-sensitive line dot method |
|---|---|
| Dot structure | 576 dots/line |
| Horizontal dot pitch | 0.125 mm (8 dots/mm) |
| Vertical dot pitch | 0.125 mm (8 dots/mm) |
| Effective printing area | 72 mm |
| Cutting type | Full or partial |
| Monochrome printing speed | 100 mm/s (800 dotlines/s) |
| 2‑color printing speed | 80 mm/s (460 dotlines/s) max |
| Power supply (head) | 24 VDC 45% 2.3 A |
| Weight (printer mechanism) | Approximately 94 g |
| Cutter life | ≥ 500,000 cuts |
| Operating temperature | +5 °C to +40 °C (guaranteed) |
| Operating humidity | 20 % to 85 % RH (no condensation) |
Yes, models with a cutter (FTP‑632MCL353/354) provide full or partial cutting functions.
The printer offers two paper paths: front insertion and bottom (rear) insertion.
The thermal head requires 24 VDC at 45 % (2.3 A) and the cutter motor needs 24 VDC at 45 % (1 A).
