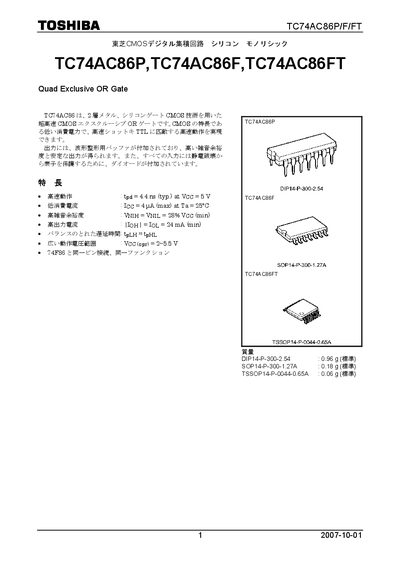

TC74AC86P/F/FT is a Toshiba CMOS digital integrated circuit that uses 2-layer metal, silicon gate CMOS technology. It is a quad exclusive OR gate with features such as high-speed operation, low power consumption, and stable output. It is equivalent to 74F86 in terms of pin connection and function.
The TC74AC86 series is a high‑speed CMOS quad exclusive‑OR gate with low power consumption and built‑in output buffers for high noise margin and stable output. All inputs are protected by diodes.
The device is offered in three surface‑mount packages (DIP‑14, SOP‑14, TSSOP‑14) with detailed electrical characteristics, absolute maximum ratings, and recommended operating conditions for reliable design. This manual is written in Japanese.
| Operating voltage (Vcc) | 2.0 V – 5.5 V |
|---|---|
| Package mass (DIP‑14) | 0.96 g (standard) |
