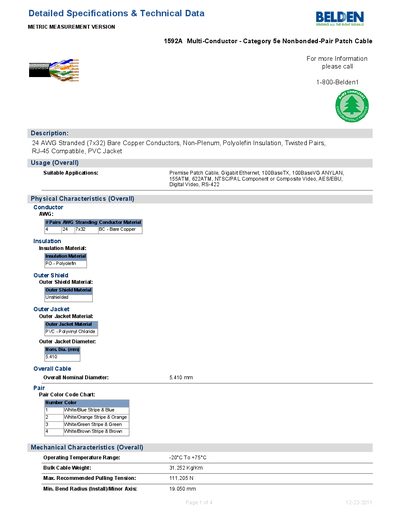

This document is the data sheet of Belden 1592A Multi-Conductor - Category 5e Nonbonded-Pair Patch Cable. The product is made by Belden and its model is 1592A. It is a Category 5e compliant non-bonded pair cable. It uses 24 AWG, 7x32 bare copper conductors, non-plenum, polyolefin insulation, twisted pairs, RJ-45 compatible, PVC jacket. The product is suitable for premise patch cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422 etc.
The 1592A is a 24 AWG stranded, bare‑copper, non‑plenum patch cable with polyolefin insulation and a PVC outer jacket. It is RJ‑45 compatible and suitable for Gigabit Ethernet, video, audio, and RS‑422 applications. Physical data include a 5.410 mm nominal diameter, operating temperature from –20 °C to +75 °C, bulk weight of 31.252 kg/km, and a maximum pulling tension of 111.205 N.
The cable complies with NEC (CM), IEC, and EU directives such as RoHS and LVD. It is certified to Category 5e (TIA‑568‑C.2) and has been tested for flame resistance (UL1685). The product is unshielded, non‑plenum, and is offered in multiple color‑coded variants for easy identification.
| Conductor AWG | 24 AWG |
|---|---|
| Insulation Material | Polyolefin |
| Outer Jacket Material | PVC - Polyvinyl Chloride |
| Operating Temperature Range | -20 °C to +75 °C |
| Bulk Cable Weight | 31.252 Kg/Km |
| Max Recommended Pulling Tension | 111.205 N |
| Minimum Bend Radius | 19.050 mm |
| Plenum Rating | No |
| RoHS Compliance | Yes |
| Category Standard | TIA 568.C.2 |
The cable operates from –20 °C to +75 °C.
No, the cable is not plenum rated.
Yes, the cable complies with EU RoHS (Directive 2002/95/EC).
The outer jacket is made of PVC – Polyvinyl Chloride.
