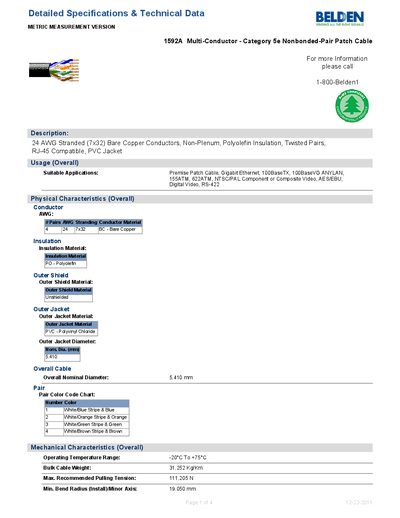

Belden 1592A Category 5e Patch Cable Datasheet
The 1592A is a 24 AWG stranded (7×32) bare‑copper, non‑plenum Category 5e patch cable with polyolefin insulation and a PVC jacket. It is designed for premise patch applications such as Gigabit Ethernet, 100BaseTX, video, and audio signals, and is RJ‑45 compatible.
The cable complies with NEC (UL) CM, CEC (UL) CM, EU CE Mark, RoHS, and other directives. Mechanical data include an operating temperature range of –20 °C to +75 °C, bulk weight of 31.252 kg/km, and a maximum pulling tension of 111.205 N. Electrical parameters such as nominal capacitance, delay, and voltage ratings are also listed.
Belden 1592A specifications
| Conductor AWG | 24 AWG |
|---|---|
| Insulation Material | Polyolefin |
| Outer Jacket Material | PVC (Polyvinyl Chloride) |
| Overall Nominal Diameter | 5.410 mm |
| Operating Temperature Range | -20 °C to +75 °C |
| Bulk Cable Weight | 31.252 kg/km |
| Maximum Recommended Pulling Tension | 111.205 N |
| Plenum Rating | No |
| Maximum Delay | 510 ns @ 100 MHz |
All Belden 1592A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the temperature range for the Belden 1592A cable?
The cable operates from –20 °C to +75 °C.
Is the Belden 1592A cable plenum rated?
No, it is a non‑plenum cable.
What is the operating temperature range of the 1592A cable?
The cable operates from –20 °C to +75 °C.
From: Belden 1592A Category 5e Nonbonded-Pair Patch Cable Datasheet
Is the 1592A cable plenum rated?
No, the cable is not plenum rated.
From: Belden 1592A Category 5e Nonbonded-Pair Patch Cable Datasheet
