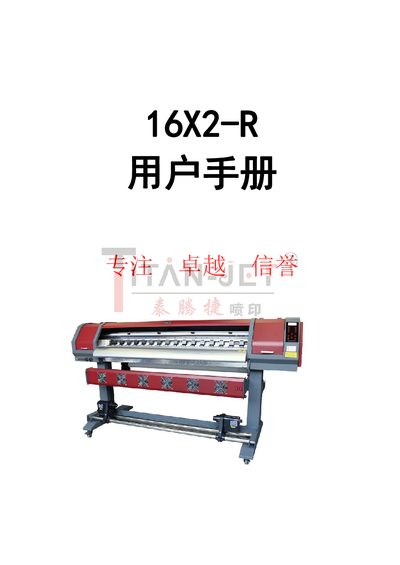

16X2-R Photo Printer User Manual

The 16X2-R Photo Printer User Manual provides installation, software setup, and operation instructions for the printer.

Category: Printer
Document type: User Manual
Language: Chinese
Pages: 23
File format: PDF
File size: 4.5 MB
Published: 01 October, 2026
Updated: 01 October, 2026
MD5 checksum: 4759CA0DF8D57857935F968DEF5A65F3
PDF: 16X2-R Photo Printer User Manual PDF

About this manual

This manual covers the complete setup of the 16X2-R photo printer, including mechanical assembly, computer configuration, and wiring. Detailed step‑by‑step instructions guide users through unpacking, rack installation, and connecting the printer to a computer.

It also explains how to install the MonTai RIP software, configure printing parameters, and perform printhead calibration and maintenance. Calibration procedures for vertical, horizontal, and color alignment are described with on‑screen settings and example values. This manual is written in Chinese.

What's inside

Machine Introduction and Mechanical Installation
MonTai Software Installation and Use
Printing Software Installation
Power‑On Test and Parameter Import
Printhead Installation
Software Operation and Calibration

Specifications

Operating System	Windows 7 64‑bit
CPU	Intel i5 or higher
Memory	4 GB or more
Data Cable	USB 2.0 cable

Frequently asked questions

How do I install the MonTai RIP software for the printer?

Insert the MonTai software CD, follow the on‑screen prompts, choose an installation path, and complete the installation as shown in the manual’s screenshots.
