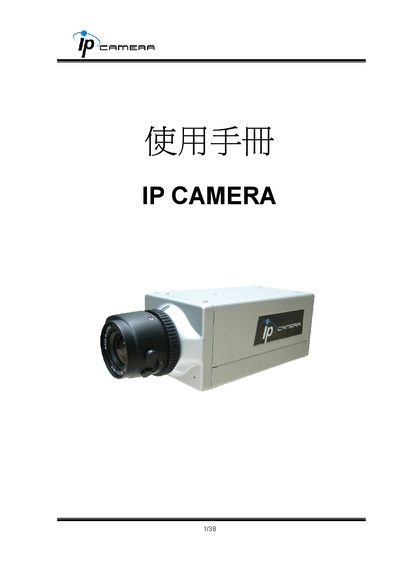

This document is a user manual for the IP Camera, which includes installation, setup, and management instructions. The IP Camera is a professional CCD IP camera with features such as live viewing, high-quality images, remote playback, and two-way audio. It is suitable for home security monitoring systems.
This manual provides detailed information on the professional CCD IP camera, covering hardware components, network configuration, video settings, and power requirements. It includes specifications such as CPU type, image sensor, dimensions, and supported video formats.
Installation guidance, software requirements, and troubleshooting tips are also included, along with instructions for SD‑card management, motion detection setup, and remote firmware upgrades.
| CPU | ARM9, 32‑bit RISC |
|---|---|
| Memory | 64 MB SDRAM, 8 MB Flash |
| Image sensor | 1/3" CCD |
| Sensitivity | Hi‑Res 0.1 Lux, Mid‑Res 0.05 Lux |
| Lens | Changeable, CS mount |
| DC Iris | Supported |
| RS‑485 | Yes |
| Video Output | 1 |
| Microphone | Built‑in |
| Audio Output | 1 |
| Power Consumption (LAN) | DC 12 V, 450 mA |
| Power Consumption (WLAN) | DC 12 V, 550 mA |
| Dimensions (W×H×D) | 58 mm × 65 mm × 131.5 mm |
| Network Interface | 10/100 Base‑T Ethernet |
| Network Protocols | HTTP, TCP/IP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP |
| Wireless (optional) | 802.11b/g, WEP 64/128‑bit |
| Video Resolution (NTSC) | 720×480, 704×480, 352×240, 176×120 |
| Video Resolution (PAL) | 720×576, 704×576, 352×288, 176×144 |
| Compression Format | MPEG‑4 / JPEG |
| Video Bitrate Adjustment | CBR, VBR |
| Motion Detection | Yes, 3 areas |
| Audio | 2‑way |
The camera uses a 1/3‑inch CCD image sensor.
LAN requires DC 12 V at 450 mA, while WLAN requires DC 12 V at 550 mA.
NTSC supports 720×480, 704×480, 352×240, 176×120; PAL supports 720×576, 704×576, 352×288, 176×144.
Yes, firmware can be upgraded remotely via HTTP mode.
