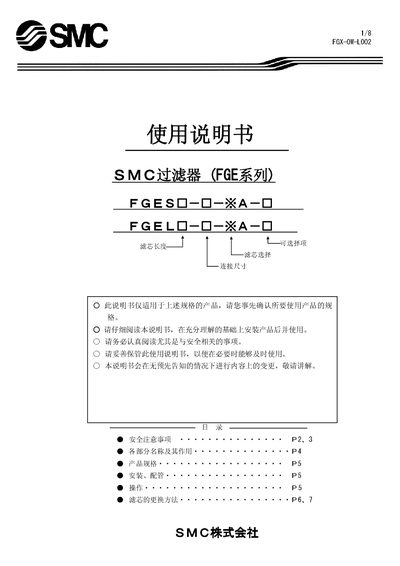

FGE series use manual, mainly introduce the product safety instructions, each part name and function, product specifications, installation, piping, operation, filter replacement method
This manual covers safety precautions for the FGES:L Series filter, including pressure, temperature, fluid, and environmental limits. It also explains the function of each component and provides product specifications.
Installation, operation, and maintenance procedures are detailed, with step‑by‑step instructions for piping, filter‑element replacement, O‑ring handling, and re‑starting after service. Troubleshooting tips and contact information are included. This manual is written in Chinese.
| Allowed fluid | Only liquids; gases not allowed |
|---|---|
| Maximum operating pressure | 0.7 MPa |
| Maximum operating temperature | 80 °C |
| Container capacity | 14 L, 21 L, 29 L |
| Weight | 10 kg, 13 kg, 18 kg |
| Filter‑element differential pressure for replacement | 0.1 MPa |
Replace the filter element when the pressure drop reaches the specified value (0.1 MPa).
The filter can be used up to a maximum pressure of 0.7 MPa.
Only liquid fluids are allowed; gases must not be used.
