Microchip PIC18F45J10 Series Datasheet

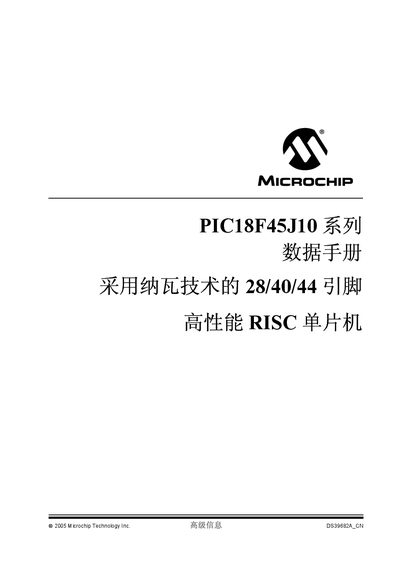

Microchip PIC18F45J10 Series Datasheet - cover page
Brand
MICROCHIP
Category
Other device
Document type
Datasheet
Language
Chinese
Pages
360
File format
PDF
File size
6.1 MB
Published
23 December, 2011
Updated
29 September, 2023
MD5 checksum
8DB3F8B0E7E6A535E75937B1BB39F5E7

About this manual

The PIC18F45J10 series is a 28‑, 40‑ or 44‑pin high‑performance RISC microcontroller built on Nano‑technology. It offers a wide operating voltage range, on‑chip regulator, low‑power flash, and a rich set of peripherals including multiple timers, PWM modules, serial interfaces and an 8×8 hardware multiplier.

The document provides detailed pin‑out diagrams, electrical specifications, package information, and functional descriptions of each module, along with development support resources and ordering information. This manual is written in Chinese.

What's inside

  • Device Overview
  • Oscillator Configuration
  • Power Management Modes
  • Reset
  • Memory Organization
  • Program Memory
  • 8×8 Hardware Multiplier
  • Interrupts
  • I/O Ports
  • Timer0 Module

Specifications

Operating voltage range2.0 V to 3.6 V
Maximum input voltage on digital pins5.5 V
On‑chip regulator voltage2.5 V
Programmable watchdog timer period4 ms to 131 s
Maximum oscillator frequency40 MHz
Number of PWM outputs1‑4
ADC resolution10‑bit
Maximum current per I/O pin25 mA

Frequently asked questions

What is the operating voltage range of the PIC18F45J10?

The device operates from 2.0 V up to 3.6 V.

What is the maximum oscillator frequency supported?

Both crystal and external clock modes can run up to 40 MHz.

How many PWM outputs can the PIC18F45J10 provide?

It can provide from 1 to 4 PWM outputs depending on configuration.
