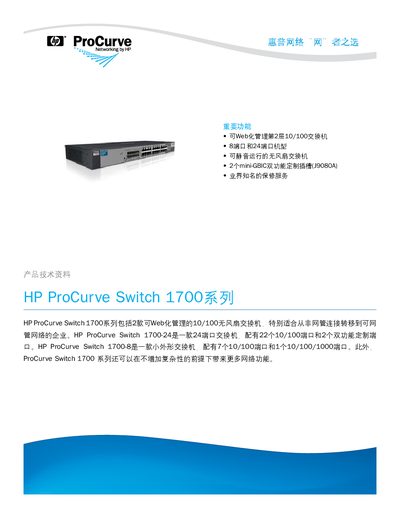

The HP ProCurve Switch 1700 series includes 2 Web-managed 10/100 fanless switches, especially suitable for enterprises migrating from non-managed connections to managed networks. The HP ProCurve Switch 1700-24 is a 24-port switch with 22 10/100 ports and 2 dual-function custom ports. The HP ProCurve Switch 1700-8 is a small form-factor switch with 7 10/100 ports and 1 10/100/1000 port. In addition, the ProCurve Switch 1700 series provides more network functions without adding complexity.
The HP ProCurve Switch 1700 series offers two fanless, web‑managed Ethernet switches designed for small to medium‑size networks. The 1700‑24 model provides 22 adaptive 10/100 ports plus two dual‑function custom ports, while the 1700‑8 model features seven 10/100 ports and one 10/100/1000 port. Both models support advanced networking features such as VLAN, QoS, LACP link aggregation, LLDP discovery, and port mirroring, all accessible through an intuitive web interface.
Technical specifications include compact 1U dimensions, low power consumption (24 W for the 24‑port model), flash and RAM capacities of up to 2 MB, and switching capacities up to 8.4 Gbps. HP backs the series with a lifetime ProCurve warranty and next‑business‑day advance replacement service in most regions. This manual is written in Chinese.
| Dimensions (1700‑24) | 17.12 × 44.25 × 4.39 cm (1U) |
|---|---|
| Flash / RAM (1700‑24) | 2 MB flash, 2 MB RAM/ROM |
| Switching Capacity (1700‑24) | 8.4 Gbps |
HP offers a lifetime ProCurve warranty with next‑business‑day advance replacement for most countries/regions.
