The HP ProLiant ML110 (G3) server family offers a variety of configurations to meet a wide range of customer needs. The series is powered by the latest Intel Pentium 4 processors and supports dual-channel memory for outstanding performance and scalability. Additionally, this server comes with multiple optional I/O adapters to meet different network and storage requirements.
The HP ProLiant ML110 G3 is an entry‑level tower server aimed at small‑business networks. It offers a range of configurable options such as optional remote‑management cards, USB‑2.0 drives, and flexible storage configurations with SCSI or SATA drives.

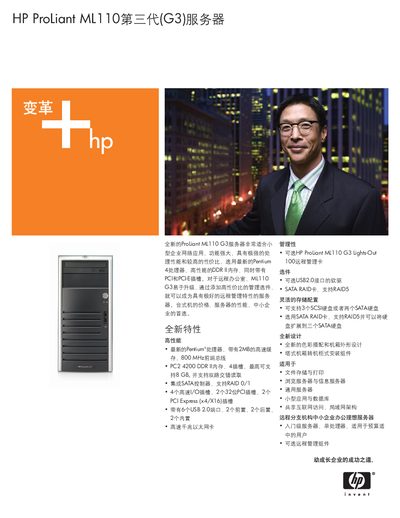

The manual details hardware specifications—including Intel Pentium 4 processors, up to 8 GB DDR2 memory, multiple PCI/PCI‑Express slots, and a 350 W power supply—along with supported operating systems, warranty terms, and service options. This manual is written in Chinese.
| Memory | PC2‑4200 DDR2 SDRAM, 533 MHz, up to 8 GB |
|---|---|
| Network Controller | Broadcom 5721 Gigabit Ethernet |
| Expansion Slots | 4×VME, 2×32‑bit PCI, 2×PCI‑Express (x4/x16) |
| Power Supply | 350 W |
| USB Ports | 6×USB 2.0 (2 front, 2 rear, 2 internal) |
| RAID Controller | Integrated SAIA controller, RAID 0/1 |
| Form Factor | 4U tower |
| Operating System Support | Windows Server 2003 (32/64‑bit), Windows Small Business Server 2003, NetWare 6.5 SBS, Red Hat Enterprise Linux 4 AS, Windows 2000 Server, Windows XP Professional |
It includes six USB 2.0 ports: two on the front panel, two on the rear, and two internal ports.
A three‑year limited warranty covering parts, one year of labor, and one year of on‑site support is provided.
Supported OS include Microsoft Windows Server 2003 (32/64‑bit), Windows Small Business Server 2003, Novell NetWare 6.5 SBS, Red Hat Enterprise Linux 4 AS, Windows 2000 Server, and Windows XP Professional.
