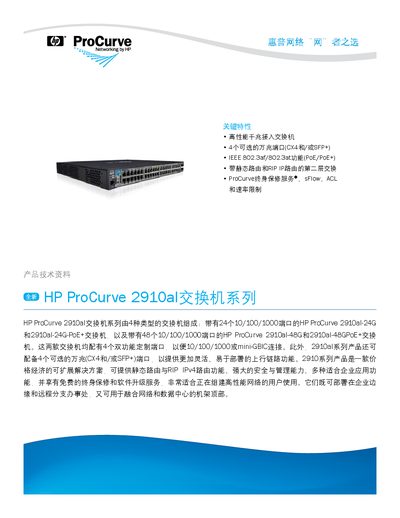

The HP ProCurve 2910al Switch Series is a high-performance Gigabit access switch that provides 4 optional 10-Gigabit ports (CX4 and/or SFP+), supports IEEE 802.3af/802.3at features (PoE/PoE+), and has second-layer switching, static routing and RIP IP routing, ProCurve Lifetime Warranty◆, sFlow, ACLs and rate limiting.
The HP 2910al series includes 24‑port and 48‑port Gigabit Ethernet switches, each with four dual‑function custom ports that can be used as RJ‑45 or mini‑GBIC slots. Optional 10‑GbE (CX4 or SFP+) ports provide flexible uplink options, and PoE/PoE+ delivers power to IP phones, wireless APs and cameras.
Key features include static routing and RIP IPv4 routing, IEEE 802.1X, ACLs, DHCP and ARP protection, sFlow monitoring, and a range of management interfaces such as CLI, web GUI, SSH, and SNMP. The switches are rack‑mountable (1U), meet multiple safety standards, and come with ProCurve lifetime warranty and optional redundant power supplies. This manual is written in Chinese.
| Ports (24‑port model) | 20 auto‑MDIX 10/100/1000 ports |
|---|---|
| Ports (48‑port model) | 44 auto‑MDIX 10/100/1000 ports |
| Optional 10‑GbE ports | Up to 4 |
| Switching capacity (24‑port) | 128 Gbps |
| Switching capacity (48‑port) | 176 Gbps |
| Dimensions (1U) | 36.58 × 44.2 × 4.4 cm |
| Weight (24‑port) | 4.95 kg |
The switches support static routing and RIP (both RIPv1 and RIPv2).
Up to 16 switches can be virtually stacked using a single IP address.
