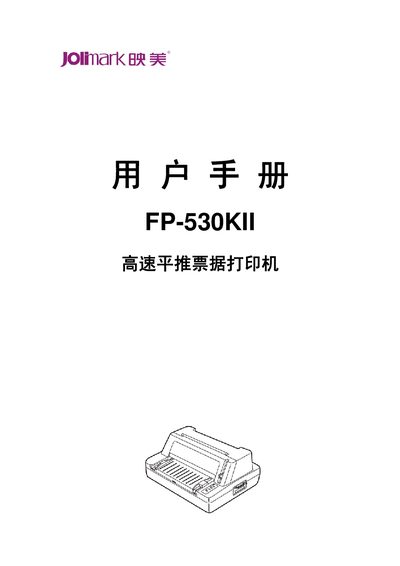

This document is the user manual for the FP-530KII high-speed flat-push ticket printer. The manual includes information about safety guidelines, printer features, preparation work, paper loading procedures, and control panel operation.
The Jolimark FP-530KII is a 24‑needle high‑speed plug‑notes printer designed for fast, high‑quality printing of invoices, labels, and other documents. The manual explains safety precautions, printer features, installation steps, and how to operate the control panel.
The document is organized into safety instructions, preparation, paper loading procedures, interface connections, control‑panel functions, maintenance, and a detailed specifications appendix. It also includes troubleshooting tips and environmental disposal information. This manual is written in Chinese.
| Printing method | 24‑needle dot‑matrix impact |
|---|---|
| Print width | 80 columns (10 cpi) / 203.2 mm |
| Maximum print speed | 333 CPS (ultra‑high speed mode) |
| Resolution | 360 × 360 dpi (max) |
| Interface options | Parallel Centronics (IEEE1284); optional RS‑232C serial or USB 2.0 Full‑Speed |
| Power consumption | 38 W working / 80 W max / 9 W standby |
| Dimensions (W×D×H) | 417 mm × 325 mm × 205 mm |
| Weight | ≈5.7 kg |
| Noise level | <55 dB(A) |
The printer comes with a standard parallel Centronics interface and optional serial RS‑232C or USB 2.0 Full‑Speed interfaces that can be selected with the appropriate cable.
Read the safety instructions carefully, avoid touching a hot print head, keep fingers away from the feed rollers, do not clean with alcohol while powered, and ensure proper ventilation and stable placement.
