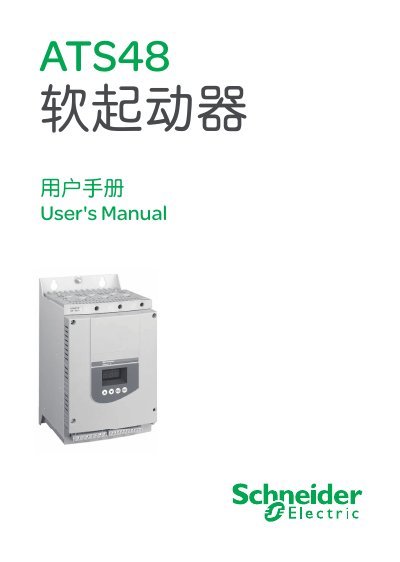

ATS48 soft starter user manual, introduces the characteristics and features of the product, installation, setting, operation methods, etc.
This user manual provides step‑by‑step instructions for installing and setting up the Schneider Electric ATS48 soft starter. It covers safety precautions, wiring diagrams, factory default settings and recommended installation methods for both wall‑mounted and floor‑standing units.
The document also details technical specifications, protection features, fault diagnostics and advanced configuration menus, helping users configure motor parameters, communication settings and I/O functions safely and efficiently. This manual is written in Chinese.
| Protection level (ATS48D17 to C11) | IP20 |
|---|---|
| Protection level (ATS48C14 to M12) | IP00 |
| Vibration resistance | 1.5 mm peak from 2‑13 Hz |
| Shock resistance | 15 g, 11 ms |
| Operating temperature range | -10 °C to +40 °C (no derating) |
| Maximum operating altitude | 1000 m (no derating) |
| Storage temperature range | -25 °C to +70 °C |
| Power supply (Q version) | 220 V‑415 V AC |
| Power supply (Y version) | 110 V‑230 V AC |
The starter uses a serial port with address 0, baud rate 19200 bps, 8‑bit data, no parity, 1 stop bit (8N1).
