HP Z600 workstation is a high-performance workstation with 8-core computing and display capabilities, a small and quiet body, saving office space, energy consumption, and a quiet working environment.
The HP Z600 workstation combines eight‑core computing power with a compact, quiet chassis designed for space‑constrained offices. It features a brushed‑metal finish, tool‑free chassis, integrated handles, and an 85% efficient 650 W Power Supply that meets Energy Star requirements.

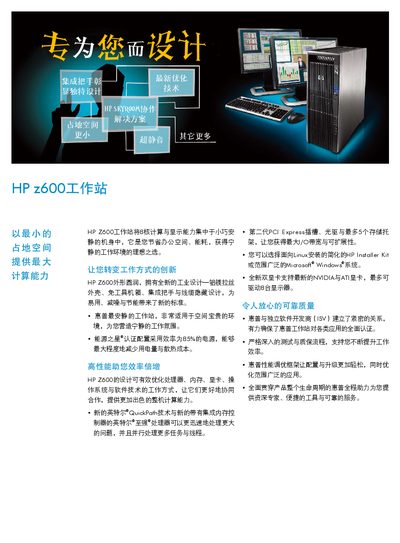

The system supports a range of Intel Xeon processors, up to 24 GB DDR3 memory across six DIMM slots, multiple storage configurations (including up to three 3.5" 7200 rpm SATA drives), and dual NVIDIA/ATI graphics cards capable of driving up to eight displays. Recommended operating systems include Windows Vista Business (32‑ and 64‑bit) and Windows XP Professional, with Linux drivers provided via HP Installer Ki. This manual is written in Chinese.
| Processor | Intel Xeon E5504 2.00 GHz, 4 MB cache, 800 MHz memory, quad‑core |
|---|---|
| Memory | 6 DIMM slots, up to 24 GB DDR3 1333 MHz, 3‑channel per CPU |
| Power Supply | 650 W, 85% efficiency |
| Dimensions | 17.5 × 6.5 × 17.3 in (44.5 × 16.5 × 44 cm) |
| Storage Capacity | Up to 3×3.5" 7200 rpm SATA drives (max 4.5 TB) |
| Graphics | Dual NVIDIA/ATI cards, supports up to 8 displays |
| PCI Express Slots | 2×Gen2 x16, 1×Gen2 x8 (mechanical x4), 1×Gen1 x8 (mechanical x4), 2×PCI slots |
The workstation has six DIMM slots and can accommodate up to 24 GB of DDR3 1333 MHz memory.
It uses a 650 W power supply with 85% efficiency.
With dual NVIDIA or ATI graphics cards, the workstation can drive up to eight displays.
